Cheap price soft UHF rfid windshield sticker with 860~960Mhz for long range 1-15M

FOB Reference Price:Get Latest Price
$0.16 - $0.20 / Pieces | 1000 Piece/Pieces (Min. Order)
Model Number:
LDR-11045
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Leadercolor
Surface Material:
Coated paper(Thermal Paper or Transfer)
Frequency:
Worldwide 840-960Mhz, US 902-928mhz, EU 865-868Mhz
Chip:
Alien H3/H4
Protocol:
ISO/IEC 18000-6C, EPC Class1 Gen2
Size:
110*45mm / 4.33*1.77inch
Reading distance:
1-15meters adjustable(reader and environment dependent)
Antenna:
9662/9654/9630/9610/9/J41/H47
OEM&ODM:
Yes
Sample:
Free
Keywords:
rfid tag
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Roll or single
Cheap price soft UHF rfid windshield sticker with 860~960Mhz for long range 1-15M
Port
Shenzhen
Product Description

Cheap price soft UHF rfid windshield sticker with 860~960Mhz for long range 1-15M


Quick Details:

Leadercolor LDR-11045 UHF RFID Windshield Label is designed in RFID technology with chip and inlay inside. It is mainly used for automatic vehicle identification system and auto glass retail management. Shape of label, long reading range over 10meters and tamper proof which makes it an excellent product in access control.


Application
Vehicle access control, Toll collection, Electronic vehicle registration or parking, Security access, Car wash project
Fleet management
Auto Glass Retail Management

Description:

RFID Parameter
Model No.
LDR-11045
Type
Passive UHF RFID Tag
Protocol
ISO/IEC 18000-6C, EPC Class1 Gen2
Frequency
Worldwide 840-960Mhz, US 902-928mhz, EU 865-868Mhz
Chip
Alien Higgs-3
Memory
EPC 96bits
TID 64bits
User 512bits
Read&Write
Supported
Read Range
1-15m adjustable(reader and environment dependent)
Data retention
10 years
Programming Cycles
100,000 cycles
Anti-collision
Support multiple tags reading
Physical Parameter
Size
110×45mm / 4.33×1.77inch
Substrate Material
Transparent Release Film
Antenna Material
Aluminum Etching
Surface Material
Coated Paper(Thermal or Transfer Optional)
Encode
Supported
Installation
Self adhesive
Operating temperature
-25℃ ~ +65℃
Operating humidity
20% ~ 90%RH
Package
Roll/singel
Customized Service
Optional Chips: Alien Higgs-3; Alien Higgs-4; NXP Ucode 7; Impinj Monza4; Impinj Monza5;
Optional Materials: Coated Paper; PVC Paper; Synthetic PP Paper; PET Paper;
Optional Glues: Standard Glues; 3M Glues; Strong Glues;
Optional Printing: Offset Printing; Barcode Printing; Series Number Printing; UV Printing
Optional Crafts: Tamper Proof ; Encoding;

Applications
Quick Detail

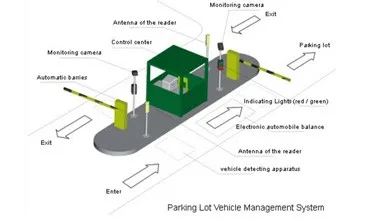

RFID ETC Tracking System is achieved by radio frequency identification Technology. The vehicle which installed adhesive rfid tags can pass the parking lot conveniently and fastly without any stop. The main components include hardware of RFID Antenna Readers, RFID Tags, Barrier, PC Server and Software.

Step

1. The administrator store drivers and cars' info into rfid tags.
2. Install rfid tags on car's windshield glass or license plate.
3. Provide the tags to the authorized users.

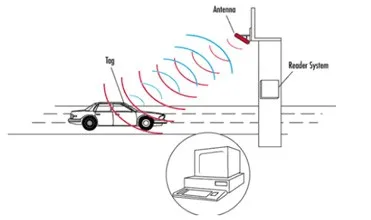

4. When car drives into the parking lot and near to the barrier, the rfid antenna reader will detect the tags' signal in a meters range and read the tags' authority, meanwhile transfer result to the Server which will recognize whether to open the barrier or not.

Products Processing
About Leadercolor
Certifications

We passed the RoHS, CE certification!

We participated in the Seamless Middle East 2016 & Seamless Middle East 2017 Exhibition!

Product Packing

Packing Details: Roll

Delivery Details: Generally it is 2-3 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory, we own industrial area of around 3,000 square meters along with three production lines and more than 100 employees. The monthly output is 40 million pieces for PVC plastic cards, 5.5 million pieces for smart cards and 5 million pieces for RFID tags .

Q2: Can I print the labels with my printer?

A: Yes, it packed in rolls and supported the printing in printer. Please share us more details about the ID, OD and so on.

Q3: Does this sticker can be used for outdoor?

 A: If customize the waterproof material, yes it is.

Q4: Does this sticker can be made disposable?

A: Yes, when you tear it off, it will be broken.

Q5: What is the minimum order?

A: MOQ as few as 1000pcs. But normally for international business, we perfect to start from 10000pcs.

Q6: How long is your delivery time?

A: Generally it is 2-3 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.

Q7: Do you provide samples ? is it free or extra ?

A: 1.Yes, we could offer the sample for free in stock, but need charge the freight.

    2. If you need us to design sample for you, we will charge the design cost.


Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Payment by Alibaba Trade Assurance, it is the most reliable way to promise your quality!

Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, please feel free to contact us as below:
